Jinggong Manufacturing Co., Ltd. Headquarters Industrial Park - Colorful Magical Art Stone Project Case

I. Project Overview
● Project Name : Jinggong Manufacturing Co., Ltd. Headquarters Industrial Park
● Project Location : Foshan City, Guangdong Province (directly opposite Guangdong Hongyuan Holdings Group)
● Developer : Precision Manufacturing Co., Ltd.
● Building type : Corporate headquarters + high-end intelligent manufacturing park (R&D office building, production plant, exhibition center)
● Exterior wall art stone area : approximately 92,000 square meters
● Completion date : Full delivery in October 2023.
● Design style : Futuristic and technological, with "moonlight white + deep sea blue + forest green" as the main color scheme, highly recognizable and sophisticated.
● Paint supplier : Guangdong Yongrong New Building Materials Co., Ltd. (direct supply from the manufacturer)
This project uses our independently developed Radiant Magic Art Stone (Shining Crystal Series) + Moonstone Art Paint system, perfectly achieving "real stone texture + zero color difference + 10 years without fading". It has passed the test of high temperature and humidity, acid rain and typhoon in Guangdong for 2 years and has become the most eye-catching landmark of Dongguan Science and Technology Industrial Park.
II. Material Matching Scheme (Yongrong Yaojing Stone Classic Technology Park Color Scheme)
Core Product: Radiant Magical Art Stone YR-9802-07 (Shining Crystal Series)
1.Main color
○ Moonlight White (Large Curved Shape): Moonstone Art Paint YR-9802-01 (Super White High Gloss Version)
○ Deep Sea Blue (horizontal lines between glass curtain walls): Yaojing Stone YR-9802-07-DB
○ Forest Green (top and partial accents): Shining Crystal YR-9802-07-FG
2.Core advantages of materials
○ 100% natural colored sand + silicone-modified emulsion, simulation accuracy ≥98%, resembling dry-hanging stone from a distance.
○ The sparkling effect of the crystal particles, displaying a crystalline refracting luster under sunlight, exudes a high-tech feel.
○ Moonstone series ultra-white without yellowing, stain resistance ≤5%, keeps it white and new year-round.
○ Water-based and environmentally friendly, with VOCs ≤ 80g/L, and weighing only 1/30th of stone, completely eliminating the risk of falling rocks from heights.
III. Detailed Explanation of Construction Process (Yongrong Art Stone's 8 Standardized Processes)
1.Surface preparation: Repair cracks, apply two coats of flexible putty, and sand smooth.
2.Apply one coat of Yongrong alkali-resistant sealing primer by roller (0.13kg/㎡).
3.Apply one coat of moonstone intermediate mortar (for leveling and enhancing the three-dimensional effect).
4.Apply two coats of Moonstone Art Paint to the main material (total thickness 2.0-2.5mm).
5.Shining Crystal Color Separation Area: Protected by chalk lines and masking tape
6.Apply one coat of special crystalline stone plaster (1.2 kg/m²).
7.Two coats of airless spraying are applied to the main material of the Yaojing Stone Colored Sand (1.2-1.5 kg/㎡ per coat, wet-on-wet process).
8.Apply two coats of Yongrong silicone acrylic high weather-resistant topcoat (total dry film thickness ≥ 60μm).
Theoretical dosage: 2.8-3.5 kg/m² (full system) Application equipment: Airless sprayer (18 MPa pressure, 3.0 mm nozzle) + professional color separation team

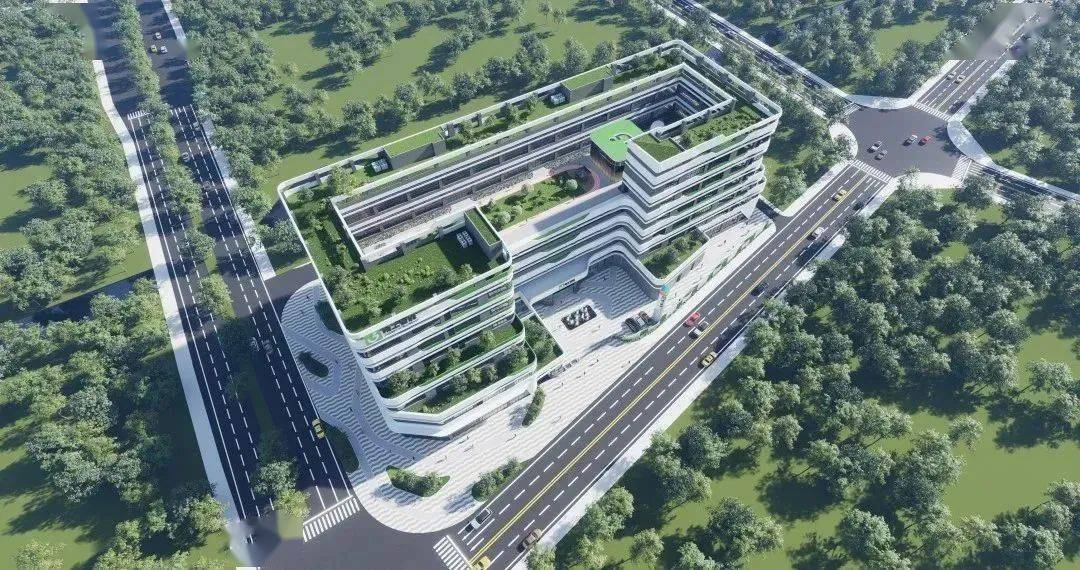

IV. Panoramic View Display
● The streamlined white body shines brightly in the sunlight, like moonlight.
● The deep sea blue and forest green horizontal lines, when viewed from a distance, resemble a futuristic warship, exuding a strong sense of technology.
● The sparkling crystal particles refract brilliant light at different angles, making every snapshot a masterpiece.
● Completed in 2023, it has been over two years and shows no signs of discoloration, sand shedding, or fading. It even self-cleanes like new after rain.
● It has become a new landmark of Dongguan Industrial Park, attracting countless developers and designers to come and learn from its experience.
V. Core Advantages of Source Manufacturers
1.Genuine Source Factory : Guangdong Yongrong owns its own artistic paint/stone paint production line, and is the first manufacturer in China to achieve the triple composite glitter technology of "colored sand + rock chips + crystal particles".
2.Moonstone Ultra-White Technology : An exclusive "titanium dioxide + siloxane" composite formula ensures no yellowing for 10 years and boasts 30% higher brightness than the industry average.
3.The entire system is self-produced : primer, aggregate, colored sand, and topcoat are all self-produced, ensuring 100% controllable color consistency.
4.Leading Cases (30 Million Square Meters) : Long-term Strategic Supplier for Thousand-Acre Industrial Parks such as Country Garden, Wanda, Hongyuan Group, and Jinggong Manufacturing.
5.10-Year Worry-Free Warranty : Sign the "10-Year No-Fading Warranty Agreement" and receive nationwide response within 48 hours.
Yongrong Yaojing Stone + Moonstone - bringing luxury home quality to industrial parks!
Two years of meticulous manufacturing have proven its effectiveness: If you don't want your exterior walls to look the same, fade, or discolor, and you don't want to have to rework them every 10 years, choose Yongrong Radiant Magic Art Stone (Shining Crystal Series) !
For the same "Moonlight White + Deep Sea Blue + Forest Green" technology park design, or to arrange a free on-site inspection of the Jinggong Manufacturing Industrial Park (directly opposite Hongyuan), please feel free to contact: Guangdong Yongrong New Building Materials Co., Ltd.
